ADJUSTABLE METAL FRAME FOR EI30 PLUS, EI60 PLUS DOORS
The adjustable frame for EI30, EI60 fire doors is a solution that combines safety, functionality and modern design. Created to meet the highest standards of fire protection, it is ideal for commercial, industrial and residential buildings. Thanks to its adjustable design, it provides a precise fit to the thickness of the wall, and its robust construction guarantees durability and reliability. The frame is compatible with EI30 and EI60 fire doors, meeting stringent safety standards. Choose quality and protection you can rely on.
Need to shoe a hole in the wall for the cover boxes.
DIMENSIONS OF THE ADJUSTABLE FRAME
|
single-leaf doors
|
||
| WIDTH | ||
|
typ
|
So
|
Sd
|
|
"60"
|
665
|
724
|
|
"70"
|
765
|
824
|
|
"80"
|
865
|
924
|
|
"90"
|
965
|
1024
|
|
"90 plus"
|
985
|
1044
|
|
"100"
|
1065
|
1124
|
|
"110"
|
1165
|
1224
|
| HEIGHT | ||
|
|
Ho
|
Hd
|
|
|
2055
|
2081
|
|
double-leaf doors
|
|||
|
WIDTH
|
|||
|
typ
|
So
|
Sd
|
|
|
"60"+"60"
|
1303
|
1362
|
|
|
"60"+"70"
|
1403
|
1462
|
|
|
"60"+"80", "70"+"70"
|
1503
|
1562
|
|
|
"60"+"90", "70"+"80"
|
1603
|
1662
|
|
|
"70"+"90", "80"+"80"
|
1703
|
1762
|
|
|
"80"+"90"
|
1803
|
1862
|
|
|
"90"+"90"
|
1903
|
1962
|
|
|
"100"+"90"
|
2003
|
2062
|
|
|
"100"+"100"
|
2103
|
2162
|
|
|
HEIGHT
|
|||
|
|
Ho
|
Hd
|
|
|
|
2055
|
2043
|
|

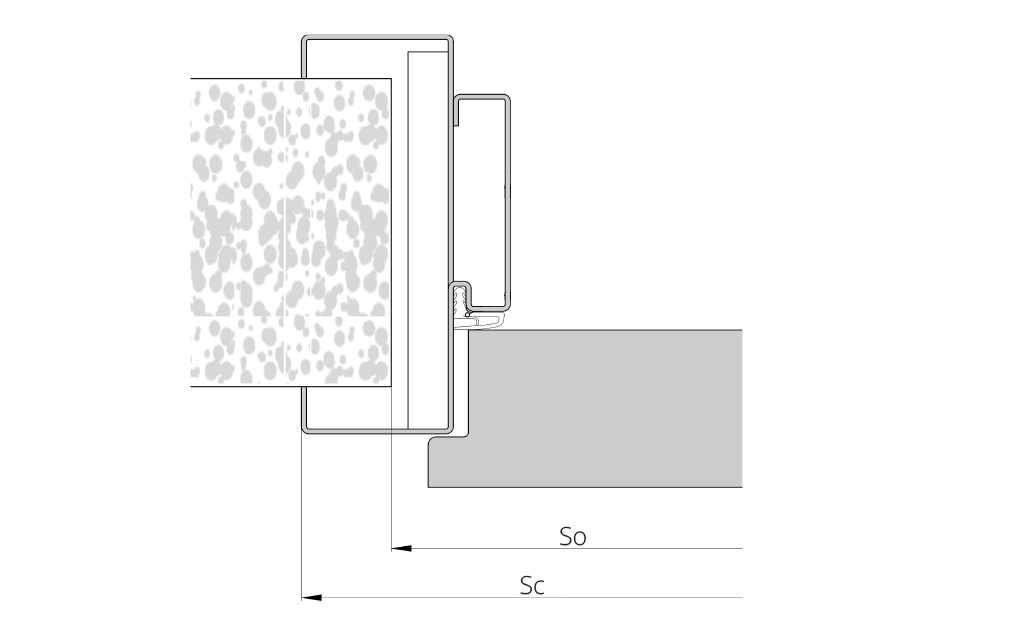

Sd - width of door on the outer side of the frame
So - width of assembly opening
Hd - door height on the external side of door-frame
Ho - height of assembly opening
Select a model
COLOURS - METAL
RAL 9016
RAL 9005
RAL 9003
RAL 8014
RAL 7047
RAL 7024
RAL 1001
