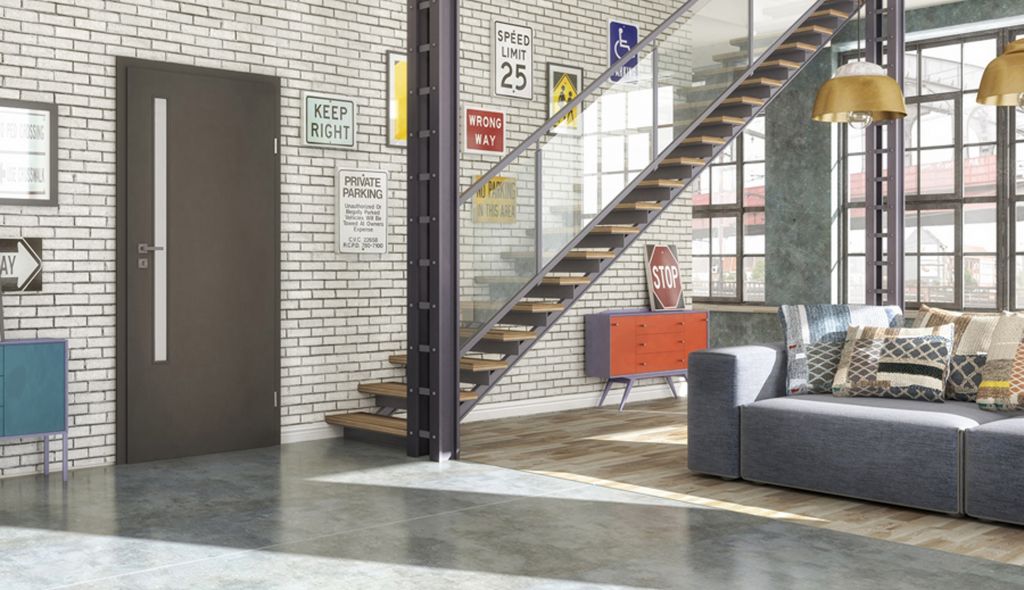

INTERIOR DOOR DECO

DECO is a well-balanced design line combined with the beauty of noble wood provides a striking setting for a luxurious arrangement and enhances its elegant character.

• solid construction – wooden rail and stile set
• surface is covered with a 0.2 mm, 0.5 mm or 0.7 mm
  thick CPL laminate, which is resistant to abrasion
  and chemicals
• door available also in III mechanical class
• K and C type adjustable and DUO type concealed hinges

STANDARD EQUIPMENT:

• white matt or transparent 4 mm thick glass
• white matt tempered glass plate (version 03SD,
  leaves - mechanical class III)
• single-point mortise lock, spacing: 72 mm (rebated system) or magnetic
  mortise lock (non-rebated system), key-operated (spacing: 90 mm),
  for a cylinder (spacing: 85 mm) or a bathroom lock (spacing: 90 mm)
  lock with stainless steel face plate (leaves - mechanical class III)
• hinges: type K – for the DIN system door frame, type C – for the
  wooden door frame, type M – for the metal door frame or the
  concealed DUO satin nickel (”60”-”80” – 2 pcs, ”90” – 3 pcs)
• hinges: type K (leaves - mechanical class III) – 3 pcs
• in case of door leaf with door closer and DIN system or metal frame
  to be used T type hings ( „60”-„80” – 3 pcs, „90”-„110” – 4 pcs) -
  replacement of standard hinges with hinge type T for an extra charge


ADDITIONAL EQUIPMENT (AT AN EXTRA CHARGE):

• size “100” (glazing decoration as in “90”)
• size “110” (glazing decoration as in “90”)
• REVES system (version 00)
• recuperation trim
• CPL laminate available at an extra charge 0.5 mm, 0.7 mm (”60” - ”80”)*
• CPL laminate available at an extra charge 0.5 mm, 0.7 mm (”90” - ”110”)*
• extra charge for SILKSTONE CPL colours
• perforated chipboard in-fill
• solid chipboard in-fill (third hinge recommended)
• third hinge in the door leaf or adjustable pivot hinge:
  type K, type C, type M for a width of ”60”-”80”
  type T
  concealed DUO type for a width of ”60”-”70”
• rail and stile set (allowing the user to shorten the door leaf
  by max. 50 mm on a do-it-yourself basis)
• rail and stile set (allowing the user to shorten the door leaf
  by max. 90 mm on a do-it-yourself basis)
• reinforcement for door closer
• bottom rail and stile set protection against excessive moisture impact
  (not applicable to leaves with ventilation trim)
• door lower by 50 mm or 100 mm (rebated system)
• door lower by 55 mm or 100 mm (non-rebated system)
• non-standard height
• door higher by 50 mm or 100 mm (third hinge in the door leaf
  is required)
• door higher by 150 mm or 200 mm (third hinge in the door leaf
  is required)
• ventilation trim (p. 141)
• tempered glass (version 02, 04, 05)
• tempered transparent 4 mm thick glass
• edges in other colours - black, grey, graphite - are available
