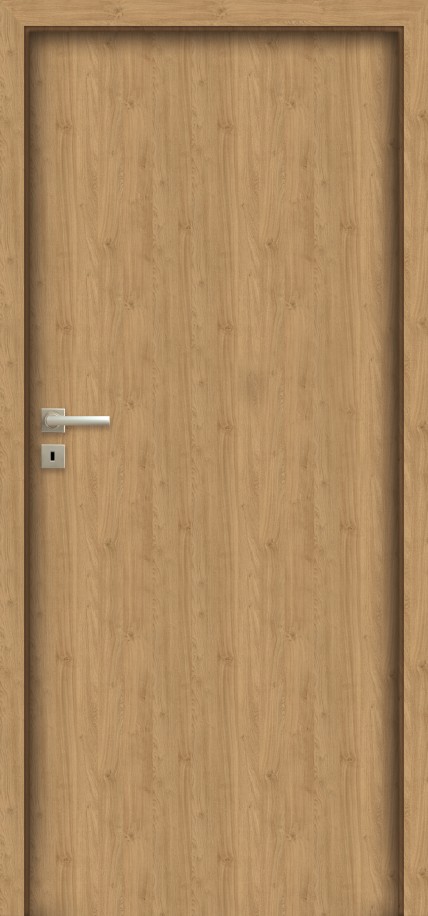

description of the product
- solid construction - wooden frame
- surface covered with EGGER HPL laminate with a thickness of
HPL EGGER laminate with a thickness of 0.8 mm with high resistance to mechanical damage and scratches.
and scratches; characterized by resistance to moisture,
temperature changes and easy to keep clean - door frame covered with CPL laminate 0,15 mm thick
- doors also available in mechanical class III (page 168)
- adjustable hinge type C, K, T or adjustable DUO
STANDARD EQUIPMENT
- white mat or clear glass with a thickness of 4 mm
Tempered glass white mat (version 03SD) - single-point lock, 72 mm spacing (rebate system)
or magnetic (rebateless system) mortise, keyed
(spacing 90 mm), for an insert (spacing 85 mm) or for a bathroom lock
bathroom lock (spacing of 90 mm) - hinges: type T or type K silver - for DIN system frame,
type C silver - for wooden doorframe, type M - for metal doorframe
metal or covered DUO satin nickel (“60”-“80” - 2 pcs, “90” - 3 pcs). - in the case of the leaf with a door closer and DIN or metal frame
metal it is necessary to use hinges type T in the amount of “60”-“80” - 3 pcs;
“90“-”110” - 4 pcs.
ADDITIONAL EQUIPMENT
- REVES (reverse rebate) system (version 00)
- third hinge in the sash or adjustable pivot hinge:
type C for width “60”-"80”
Type M for width “60”-"80”
T type for width “60”-"80”
covered DUO for width “60”-"80”
covered TE for width “60”-"80” - door closers, electric door openers, recuperation, drop seal
- Frame (allowing self-shortening up to 50 mm)
- frame (allowing self-shortening up to 90 mm)
- Reinforcement for door closer
- door lower by 50 mm or 100 mm
- non-standard height
- doors higher by 50 mm or 100 mm (third hinge required at extra charge)
- ventilation cut-out
- Tempered glass: version 02, 04, 05
- toughened transparent glass with a thickness of 4 mm
- possibility to make edging in other color - black, gray, graphite
- ABS edging in black, white, titano, Polish oak or anthracite (does not apply to REVES system)
EGGER LAMINATED HPL 0.8 mm UNI STRUCTURE ST9
574 cashmere
575 grey
576 alpine white
LAMINATED HPL EGGER ST12
570 vincenza oak light
571 vincenza oak
572 kendal oak natural
573 kendal oak oiled
