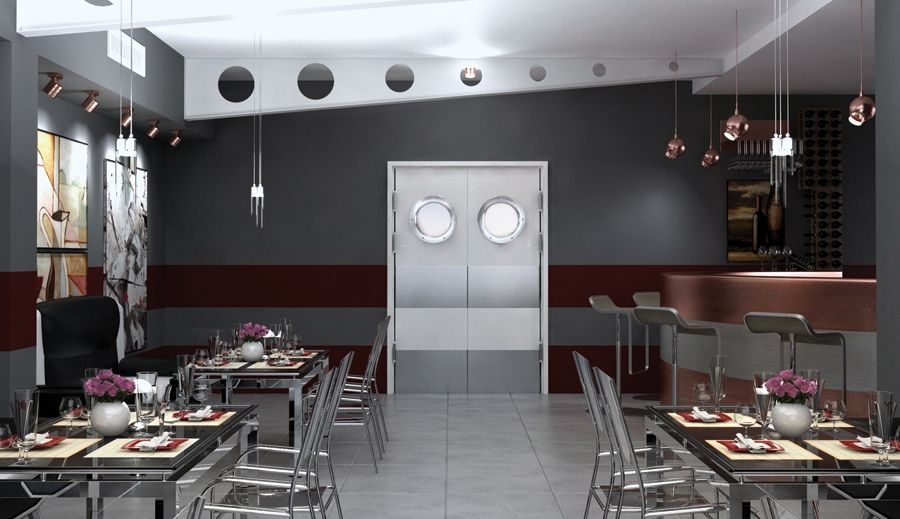

Swing doors
Our swinging doors are the ideal solution for those who value comfort, style and high quality workmanship. Thanks to the use of innovative materials and precise workmanship, our doors are perfect for both homes and commercial spaces, bringing harmony and fluidity to the transitions between rooms. Experience how our doors can transform your space!
Solid or glazed leaf in the rebate-free system. The construction of the leaf consists of a coniferous timber frame faced with HDF panels on both sides. Standard filling is a layer with honeycomb structure (hollow board optional). Nominal thickness of the leaf is 40 mm.
CASEMENT CONSTRUCTION:
- Solid or glazed sash in the rebate-free system. The leaf structure consists of a coniferous timber frame faced with HDF boards on both sides. Standard
- filling is a layer with honeycomb structure (optionally hollow or solid board). The nominal thickness of the leaf is 40 mm.
STANDARD EQUIPMENT
- swing hinge: height up to 2076 mm - 3 pcs.
- height 2176 mm or 2276 mm - 4 pcs.
FRAMES:
- Painted, veneered frame, veneered with 0.15 mm CPL laminate or foil matching the colour of the leaf.
- Solid wooden pine - optionally with masking strips
OPTIONAL ACCESSORIES
- roller lock
- porthole
- stainless steel panels
DOOR DIMENSIONS:
- Fixed wooden frame:
- Single leaf door: max. width ‘90’ - 1069 mm, max. height 2076 mm
- Double-leaf doors: max. width ‘90+90’ - 2018 mm, max. height 2076 mm
It is possible to produce doors with a height of 2176 mm or 2276 mm. Doors with a height of 2176 mm, 2276 mm approved for sale on the basis of individual technical documentation.
ADDITIONAL INFORMATION:
- mechanical strength class 2 according to PN-EN 1192:2001 standard
- Technical Approval AT-15-6411/2016
| SWING DOOR DIMENSIONS | |
| single-leaf swing door | |
| width „60” | 769x2076 mm |
| width „70” | 869x2076 mm |
| width „80” | 969x2076 mm |
| width „90” | 1069x2076 mm |
| double swing door | |
| width „60”+„60” | 1418x2076 mm |
| width „70”+„70” | 1618x2076 mm |
| width „80”+„80” | 1818x2076 mm |
| width „90”+„90” | 2018x2076 mm |
Select a model
ECO TOP
120 white
121 oak
132 walnut
141 Salinas oak
VENEERED
312 limba
334 European oak
323 rustic oak
340 ebony
351 marrone
390 natural walnut
404 dark walnut
405 bright walnut
421 cappuccino
422 mocca
424 teak
HIGH TOP
148 coffee ash
UNI MAT PLUS
640 graphite
641 titano
642 white
SILKSTONE
276 Polish oak
293 Royal anthracite
295 Royal merbau
297 Royal nougat
LAMISTONE CPL
240 whitewashed elm V
241 sand elm V
242 grey elm V
244 black
250 terra oak
258 white
260 white oak
263 premium walnut
289 grey
531 anthracite
LAMINATED CPL 0,2mm
820 white
222 grey
821 anthracite
844 black
863 orzech premium
