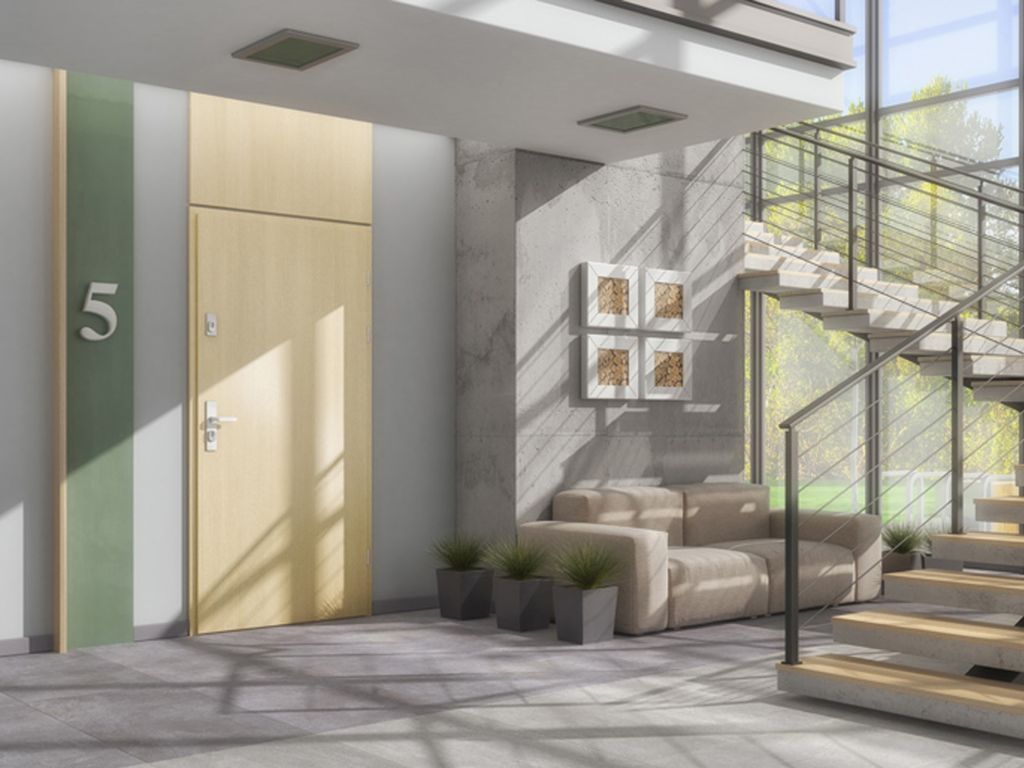

Entrance door C-30

CONSTRUCTION OF THE WING:

• Interior entrance door leading from corridors or staircases to e.g. flats in multi-family buildings or rooms in public utility buildings.
  Door leaf constructed of a wooden rail and stile set topped with two HDF boards. The in-fill is a special POL-SKONE structure.
  The leaf thickness is 56 mm.

STANDARD EQUIPMENT (INCLUDED IN THE PRICE):

• fixed pine wood door frame
• handle and plate set with a cylinder protection, class 6 cylinders (nickel-satin)
• strip type mortise five point bolt lock, spacing: 72 mm, colour: silver
• adjustable screw-in pivot hinges (“80” - “90” – 3 pcs; ”100” –4 pcs)
• levering protection bolts - 5 pcs
• oaken threshold with a height of 20 mm

DOOR FRAMES:

• rebated SYSTEM: fixed pine wood door frame, one-sidedly adjustable door frame

ADDITIONAL (available at an extra charge):

• SILKSTONE CPL surface
• adjustable door frame
• GARDA rosette in the silver colour
• class 3 GARDA handle in the colour of silver
• complete set of class 6 cylinders in the colour of silver
• peephole
• size 1112 x 2175 mm
• GARDA handle in the colour of black
• GARDA upper rose in the colour of black
• GARDA cylinder in the colour of black
• edges in other colours are available - upon consultation with the Sales Department

DIMENSIONS:

• standard: 1012 x 2075 mm
  optional: 880x1950 mm; 880x2000 mm; 880x2075 mm; 980x1950 mm; 980x2000 mm; 980x2075 mm; 1012x1950 mm; 1012x2000 mm
• 90 Plus width - 1032x2075 mm (allowing to get the clear opening of min. 900 mm when the door leaf is opened at an angle of 90°)

ADDITIONAL INFORMATION:

• burglary resistance
  POL-SKONE C-30 – class RC3 according to PN-EN 1627:2012
  – class C according to PN-B-92270:1990
• smoke control: class Sa, S200
• fire resistance: class EI230
• acoustic insulation: D1-35, D2-35, Rw=37 dB
• 4 mechanical class according to PN-EN 1192:2001
• ITB technical approval: ITB–KOT-2018/0713 edition 1

NOTE! The door should be provided with an automatic door closer conforming to the requirements of the PN-EN 1154:1999/
A1:2004/AC:2010 standards and door handles conforming to the requirements of the PN-EN 1906:2012 standard to meet the fire resistance conditions. To ensure that the door meets the antiburglar specifications, door handles should comply at least with the class 3 anti-burglar resistance rating whereas door lock cylinders should comply at least with the class 4 key-related resistance rating and min. class 1 attack resistance rating according to the PN-EN 1303:2007+AC:2008 standard.
