DUTCH OUTSIDE window

WOODEN

WINDOWS OPENING OUTWARDS

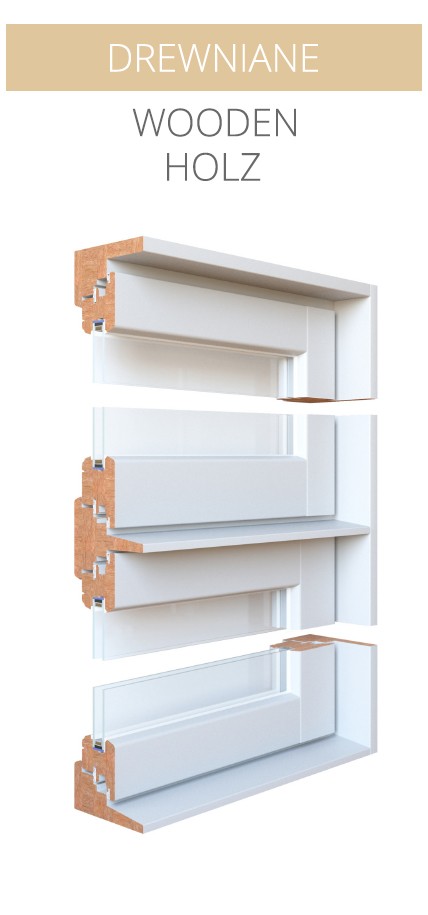

CONSTRUCTION

• single-frame window, sash thickness 68 mm, frame thickness in two options 114 mm and 140 mm, S-system glazing bead
  optional Type C

MATERIAL

• meranti glued laminated timber, optionally pine or oak

FINISHING

• opaque or transparent water-based paints, three-coat systems

STANDARD EXECUTION

• single-chamber glazing unit 4/16Ar/4/ Ug=1.0 W/m2K with warm distance frame (colours of warm frames pg. 32) or
• double chamber 4/10Ar/4/10Ar/4 Ug=0,8 W/m2K, optional thermopanel in balcony windows
• Envelope fittings with concealed ROTO DESIGNIO hinges with microventilation function (applies to rectangular windows
• tilt-and-turn windows) and three-plane regulation, with anti-balance protection, false positioning blockade
• handles
• Two profile seals in wood available in white, brown, grey or anthracite
• Handle

PARAMETERS

• Water tightness class: 6A
• air permeability class: 4
• wind load resistance class: C3

Window prices are calculated according to modular price list available at points of sale.
Warranty up to 2 years - detailed conditions in the documentation enclosed with the product.
