Window ENERGY CONCEPT 92 ALU-EFFECT
WOOD-ALUMINUM
WINDOWS MEETING THE REQUIREMENTS OF THE CLEAN AIR PROGRAM
WINDOWS DEDICATED TO ENERGY-EFFICIENT BUILDING
CONSTRUCTION

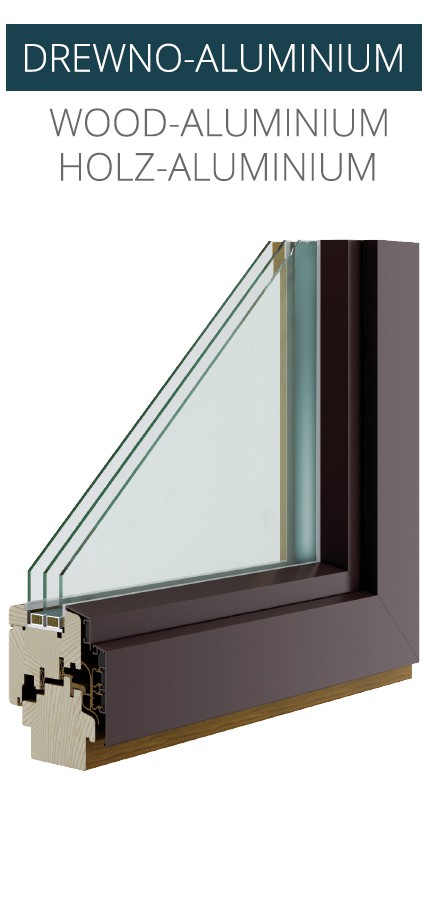

- Single-frame window, wood-aluminum with thermal insert, sash and frame thickness of 92 mm, with cladding of 105 mm.
Spacer bar Type C, optionally S-System.
MATERIAL
- Layer-glued meranti wood, optionally pine or oak.
FINISHING
- Water-soluble paints, opaque or transparent, three-coat opaque system, four-coat transparent system.
- Powder-coated aluminum, basic colors RAL 9016, 9010, 9007, 9006, 9005, 8019, 8017, 8007, 8001, 7042, 7035, 7016, 6005, 5010, 3004, 1013; other colors from the RAL palette available for an additional fee.
MANUFACTURING STANDARD
- Double-chamber glazing unit with a warm edge spacer.
- Roto NX hardware with micro-ventilation function and three-dimensional adjustment, anti-burglary protection, and locking against incorrect handle positioning.
- Hinges covers, three profile gaskets available in white or brown.
- Additional gasket between the frame cladding and the sash cladding.
- Aluminum drip cap with thermal insert.
- Handle.
PARAMETERS
- Thermal transmittance*: 0.78 W/(m²K)
- Water tightness: E900
- Air permeability: 4
- Resistance to wind load: C3
- Acoustic properties*: 34 (-1; -5)
(*) The stated values for thermal insulation and acoustic properties refer to a reference window with dimensions 1.23 x 1.48 m.
Prices for windows are calculated according to the modular price list available at sales points. Warranty up to 5 years - detailed conditions in the documentation attached to the product.
Select a model
TRANSPARENT PAINTS ADLER - PINE
PINIA MAT A16
GRANITE MAT A15
ANTRACIT MAT A14
BLACK MAT A13
WHITE MAT A12
COFFE MAT A11
KARMEL MAT A10
HONEY MAT A09
GRAFIT MAT A08
CAPPUCINO MAT A07
LATTE MAT A06
NATURE PREMIUM MAT A05
NATURE GREY MAT A04
NATURE WHITE A03
NATURE BROWN A02
NATURA MAT A01
TRANSPARENT PAINTS ADLER - OAK
PINIA MAT A16
GRANITE MAT A15
ANTRACIT MAT A14
BLACK MAT A13
COFFE MAT A11
KARMEL MAT A10
HONEY MAT A09
GRAFIT MAT A08
CAPPUCINO MAT A07
LATTE MAT A06
NATURE PREMIUM MAT A05
NATURE GREY MAT A04
NATURE BROWN A02
NATURE MAT A01
TRANSPARENT PAINTS - PINE
7016 antracyt transparentny
9001 biały transparent
9005 czarny transparent
5065 afromozja
5063 pinia
5219 teak antyczny
1710 oliwka antyczna
5067 sapelli
1040 IMPREGNATE
0046 WALNUT
5060 OLD PINE
0044 DARK TEAK
0022 LIGHT TEAK
5062 cyprys
5056 iroko
TRANSPARENT PAINTS - OAK
7016 antracyt transparentny
9005 czarny transparent
5065 afromozja
5063 pinia
5219 teak antyczny
1710 oliwka antyczna
5067 sapelli
1040 impregnat
0046 ORZECH
5060 stara sosna
0044 CIEMNY TEAK
0022 JASNY TEAK
5062 cyprys
5056 IROKO
COVERING PAINTS
brown NCS S8010-Y90R
white RAL 9016
RAL 5011 navy blue
RAL 7047 grey
RAL 7016 anthracite
