FLEXI POL-SKONE SYSTEM FOR HARMONY CONCEALED DOOR FRAME

SYSTEM

• harmony

SPECIFICATIONS

• Mechanical resistance requirements class 2, i.e. average service conditions

LEAF STRUCTURE

• Non-rebated system leaf (opened outwards) or with a notch (opened inwards). The door leaf structure consists of a rail and stile
  set made of coniferous wood, topped with HDF boards on both sides. The leaf in-fill consists of a ”honeycomb” type cellular cardboard, perforated or solid chipboard. The rated thickness of the door leaf is 40 mm.

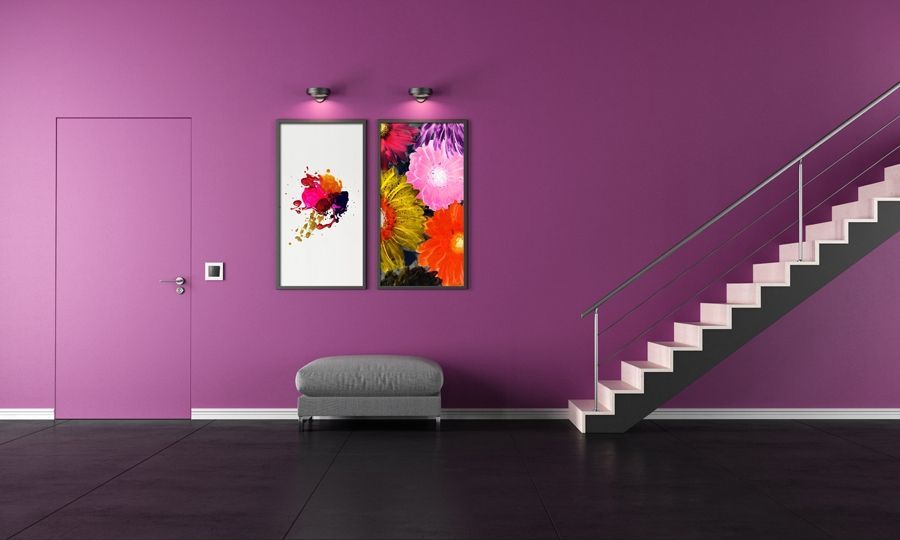

• The door leaf is designed in such a way that it can be installed flush with the door frame surface.

DOOR LEAF FINISH

• Smooth painted, veneered or prime-coated surface for DIY painting.

DOOR FRAME - COLOURS

• Concealed door frame for inwards or outwards opened doors. Made from anodised aluminum, raw aluminium for do-it-yourself painting in the colour of the wall or painted in white (RAL 9003), black (RAL 9005).

ACCESSORIES

• Standard equipment:
  concealed hinge (adjustable in 3 planes) - quantity of hinges as per table key-operated, cylinder or bathroom type magnetic lock
• Auxiliary equipment (available at an extra charge):
• drop seal preparation for an additional hinge (extra charge to the door leaf)
• hidden hinge for the Harmony door frame in the colour of white, black or
• silver door frame adaptation to the HOBES 2784 roller lock
• HOBES 2784 roller lock door frame available with averse or reverse action
• electric strike – contact with the Sales Department
• for other door dimensions – contact the Sales Department
• HARMONY door frame trimmed every 10 mm is available - the maximum trim is 100 mm

DIMENSIONS

* door openable inwards
** door openable outwards
Sd – door frame external width
So - installation hole width
Hd – door frame external height
Ho - installation hole height
