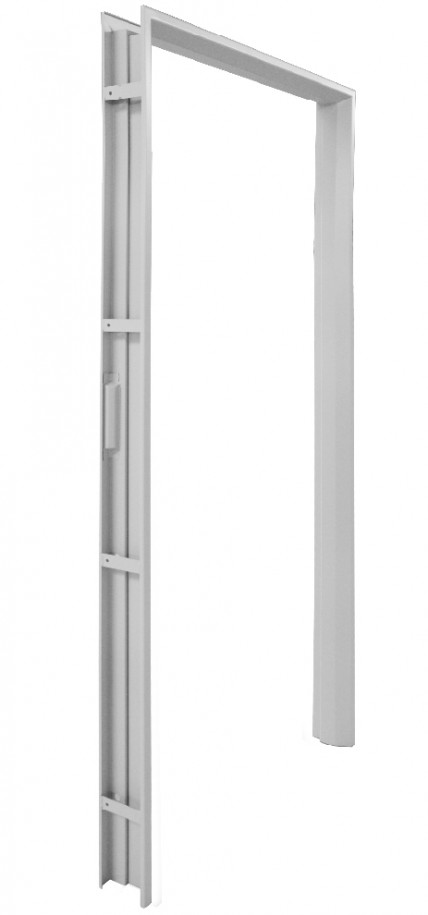

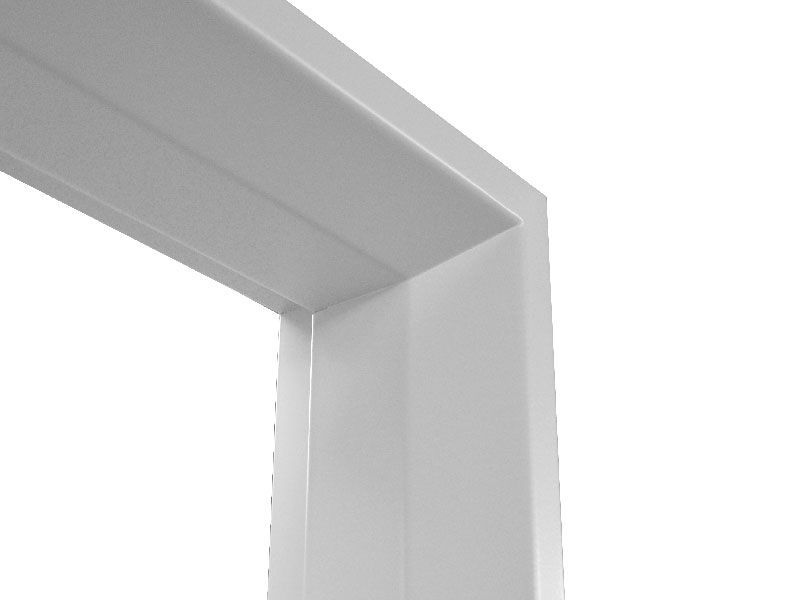

description of the product
SYSTEM
- rebated system
SPECIFICATION
- Powder-coated door frame. Standard colours: white (RAL 9016), white (RAL 9003), grey (RAL 7047), brown (RAL 8014), beige (RAL 1001), graphite (RAL 7024), black (RAL 9005). Other RAL colours are available at an extra charge - upon consultation with the Sales Department (except the metallic and pearl ones)
EXTRA CHARGES:
- door frame lower by 50 mm or 100 mm
- door frame higher by 50 mm
- door frame higher by 100 mm
- door frame higher by 150 mm
- door frame higher by 200 mm
- reinforcement for the surface mounted door closer
- compatible with the electric door strike
- electric averse action door strike JiS typ 1710-12 AC (including a catch plate)
- electric averse action door strike BIRA HARTE XS narrow XS12U 12V AC/DC (including a catch plate)
- electric averse action door strike with switch BIRA HARTE XS narrow XS12UW 12V AC/DC (including a catch plate)
- electric reverse action door strike BIRA HARTE XS narrow XS12R 12V DC (including a catch plate)
DIMENSIONS
|
single leaf door
|
|||||
|
WIDTH
|
|||||
|
typ
|
So
|
Sd
|
Sc
|
||
|
"60"
|
700
|
691
|
717
|
||
|
"70"
|
800
|
791
|
817
|
||
|
"80"
|
900
|
891
|
917
|
||
|
"90"
|
1000
|
991
|
1017
|
||
|
"90" plus
|
1010
|
1001
|
1027
|
||
|
"100"
|
1100
|
1091
|
1117
|
||
| "110" | 1200 | 1191 | 1217 | ||
|
HEIGHT
|
|||||
|
|
Ho
|
Hd
|
Hc
|
||
|
|
2069
|
2065
|
2078
|
||
Sd – door frame external width
So - installation hole width
Sc – total door frame width
Hd – door frame external height
Ho - installation hole height
Hc - total door frame height
Select a model
fixed diagonal
COLOURS - METAL
RAL 9016
RAL 9005
RAL 9003
RAL 8014
RAL 7047
RAL 7024
RAL 1001
