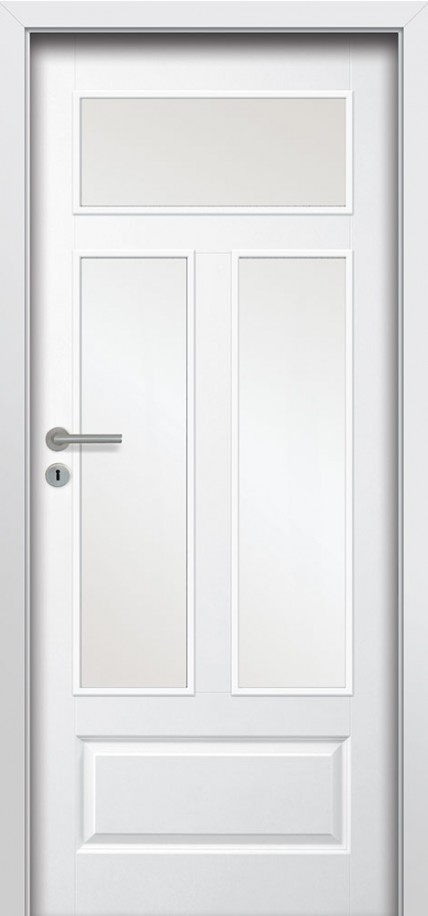

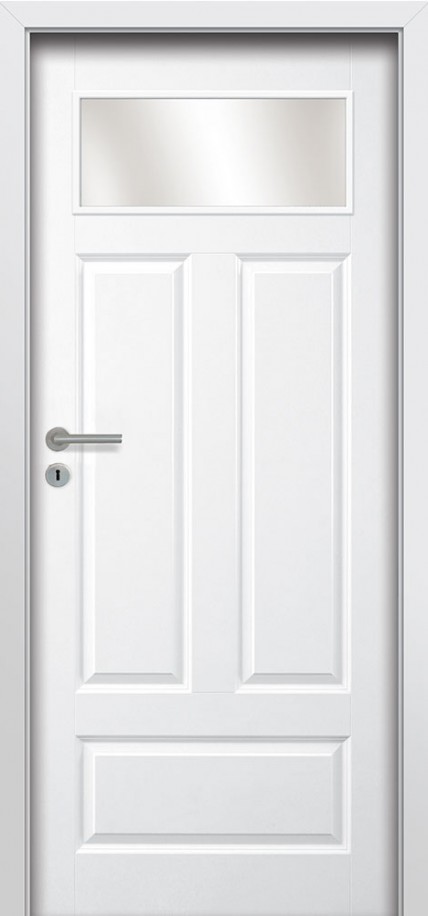

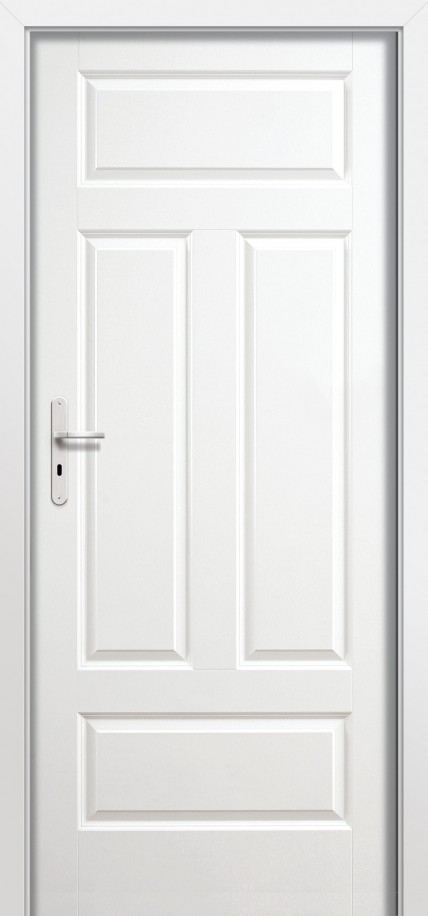

INTERIOR DOOR FIORD

STANDARD EQUIPMENT:

white matt or transparent 4 mm thick glass
version 04: white matt tempered 4 mm thick glass
single-point mortise lock, spacing: 72 mm (rebated system) or magnetic
mortise lock (non-rebated system), key-operated (spacing: 90 mm),
for a cylinder (spacing: 85 mm) or a bathroom lock (spacing: 90 mm)
hinges: type K – for the DIN system door frame, type C – for the
wooden door frame, type M – for the metal door frame or the
concealed DUO satin nickel (”60”-”80” – 2 pcs, ”90” – 3 pcs)
in case of door leaf with door closer and DIN system or metal frame to
be used T type hings ( „60”-„80” – 3 pcs, „90” – 4 pcs) - replacement
of standard hinges with hinge type T for an extra charge

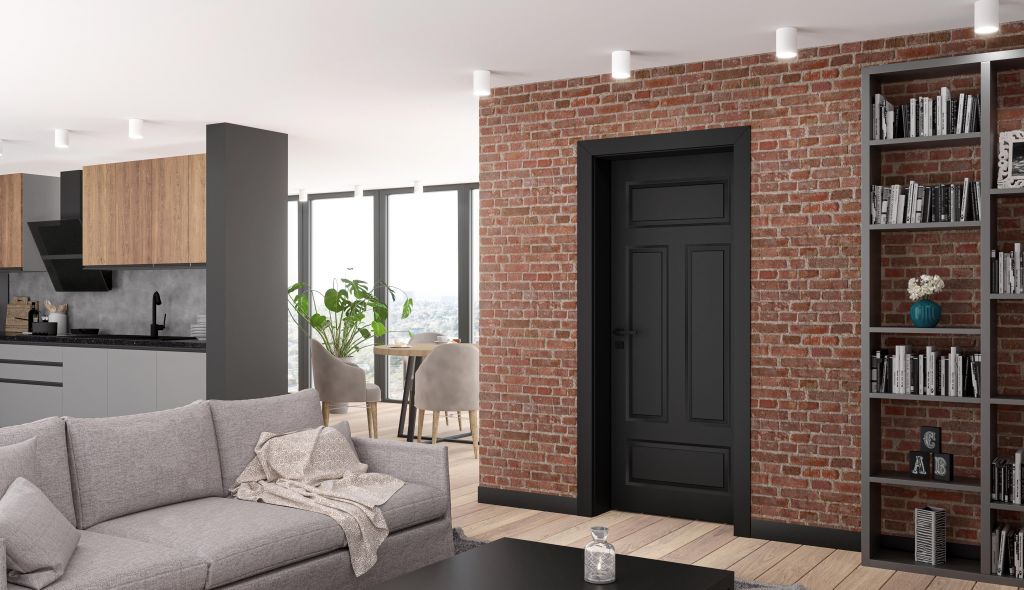

BLACK collection: standard magnetic lock face plate and DUO hinges
are in the colour of black

ADDITIONAL EQUIPMENT (AVAILABLE AT AN EXTRA CHARGE):

recuperation trim
solid chipboard in-fill (third hinge recommended)
third hinge in the door leaf:
type M, type C, type K for a width of ”60”-”80”
concealed DUO type for a width of ”60”-”80”
the DUO hinge replaced with white or black colour
rebated system BLACK collection
the lock colour replaced with black colour
the DUO lock colour replaced with black or golden gloss colour
rail and stile set (allowing the user to shorten the door leaf
by max. 50 mm on a do-it-yourself basis)
reinforcement for door closer
bottom rail and stile set protection against excessive moisture impact
(not applicable to leaves with ventilation trim)
door lower by 50 mm or 100 mm (rebated system)
door lower by 55 mm or 100 mm (non-rebated system)
ventilation trim (p. 141)
tempered transparent 4 mm thick glass
