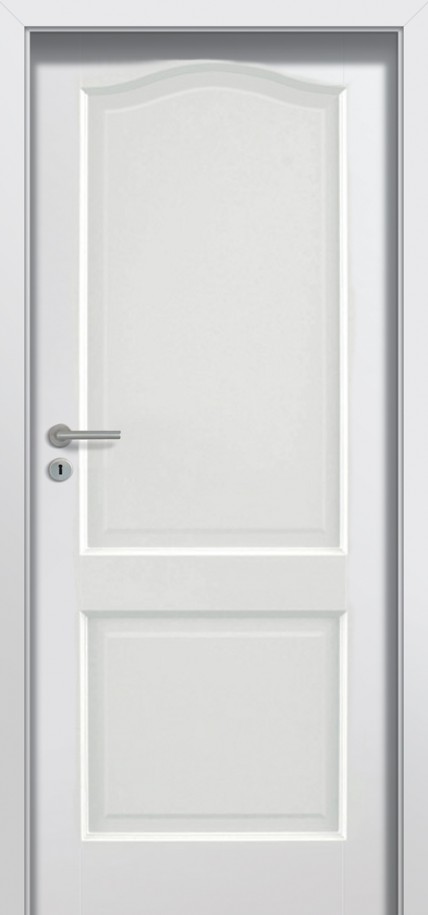

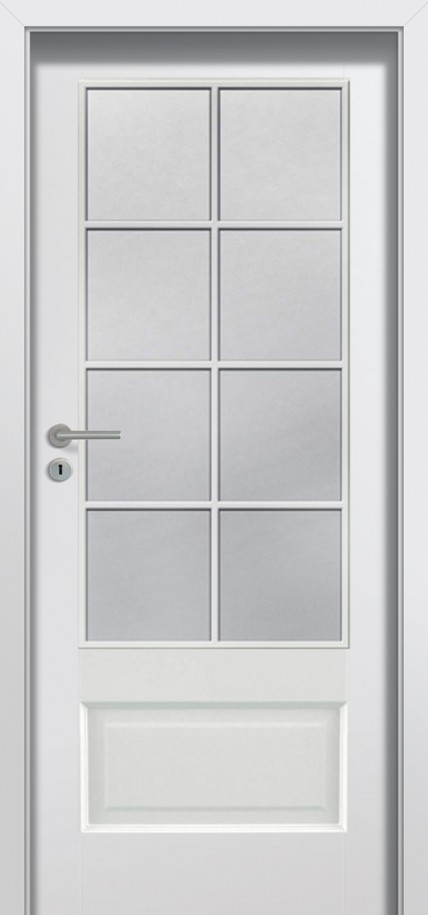

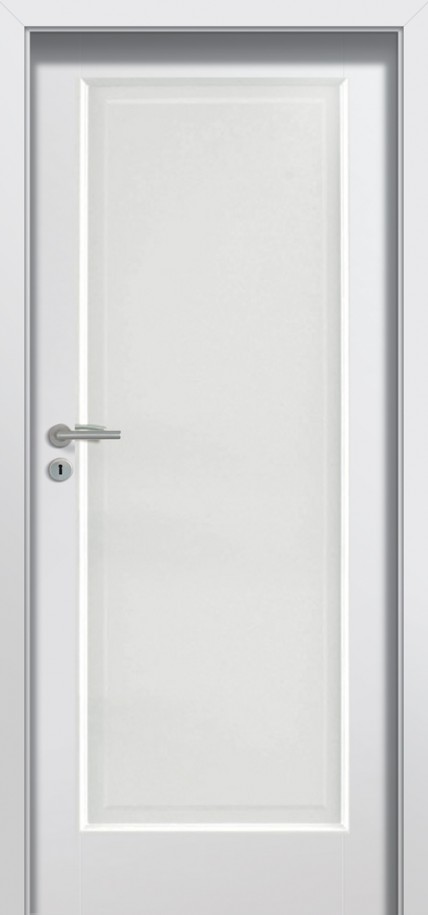

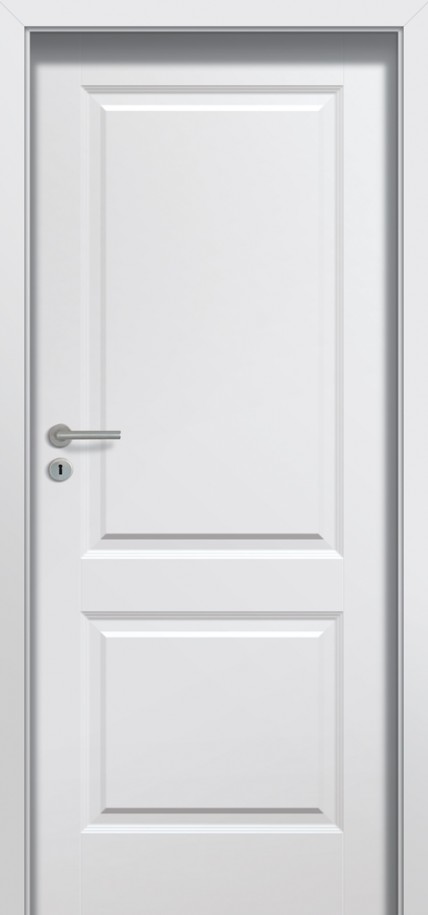

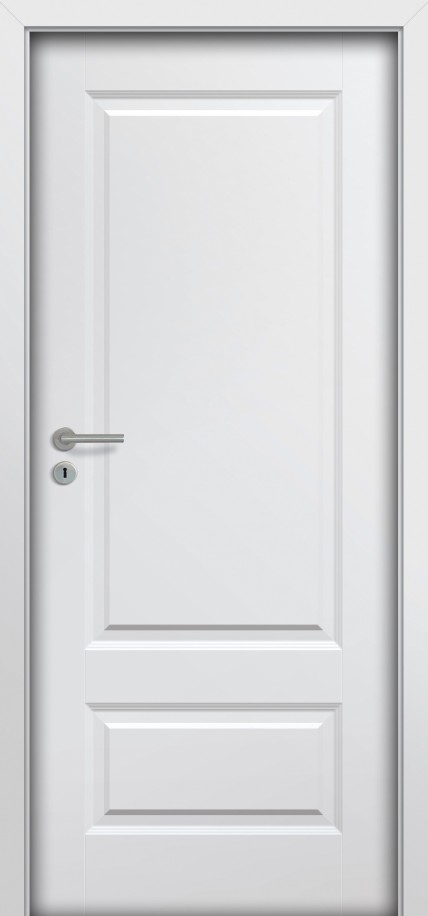

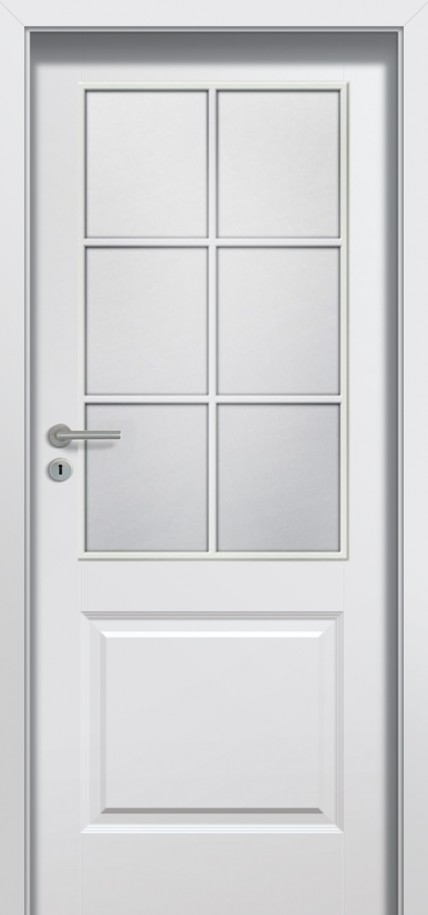

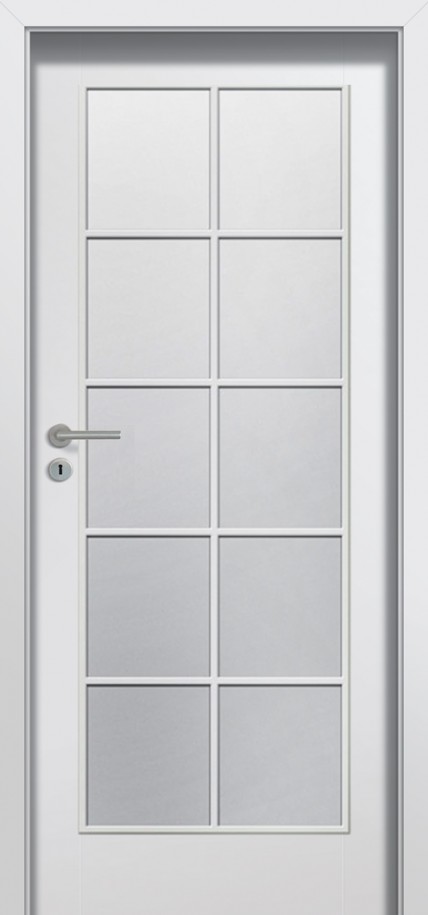

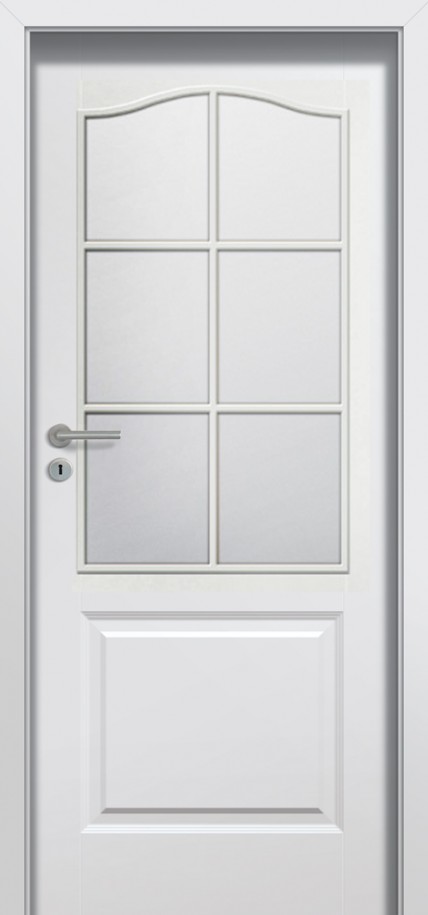

INTERIOR DOOR MODERN

STANDARD EQUIPMENT:

white matt or transparent 4 mm thick glass
wooden muntins
single-point mortise lock, spacing: 72 mm (rebated system) or magnetic
mortise lock (non-rebated system), key-operated (spacing: 90 mm),
for a cylinder (spacing: 85 mm) or a bathroom lock (spacing: 90 mm)
hinges: type K – for the DIN system door frame, type C – for the
wooden door frame, type M – for the metal door frame or the
concealed DUO satin nickel (”60”-”80” – 2 pcs, ”90” – 3 pcs)
door closer is not available
BLACK collection: standard magnetic lock face plate and DUO hinges
are in the colour of black

ADDITIONAL EQUIPMENT (AVAILABLE AT AN EXTRA CHARGE):

size ”100”
recuperation trim
REVES system (version 01, 02, 05, 08)
third hinge in the door leaf:
type K, type M for a width of ”60”-”80”
concealed DUO type for a width of ”60”-”80”
the DUO hinge replaced with white or black colour
rebated system BLACK collection
the lock colour replaced with black colour
bottom rail and stile set protection against excessive moisture impact
(not applicable to leaves with ventilation trim)
door lower by 50 mm (rebated system)
door lower by 55 mm (non-rebated system)
door higher by 50 mm or 100 mm
(third hinge in the door leaf is required)
ventilation trim (p. 141)
