TIARA internal doors

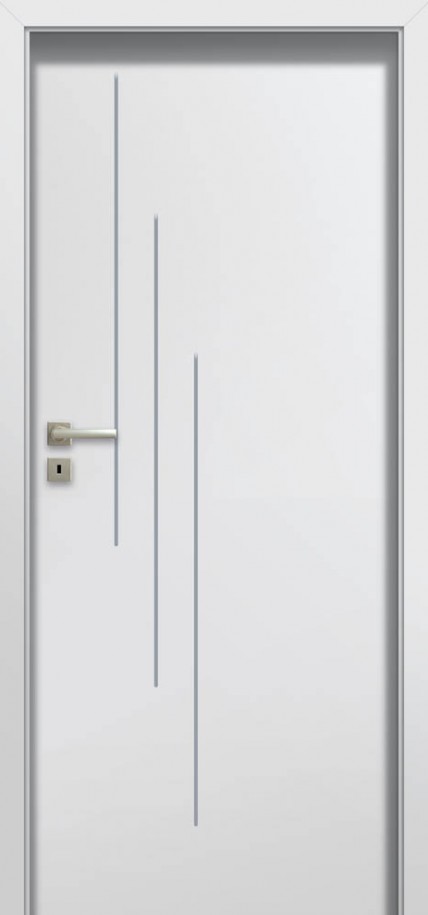

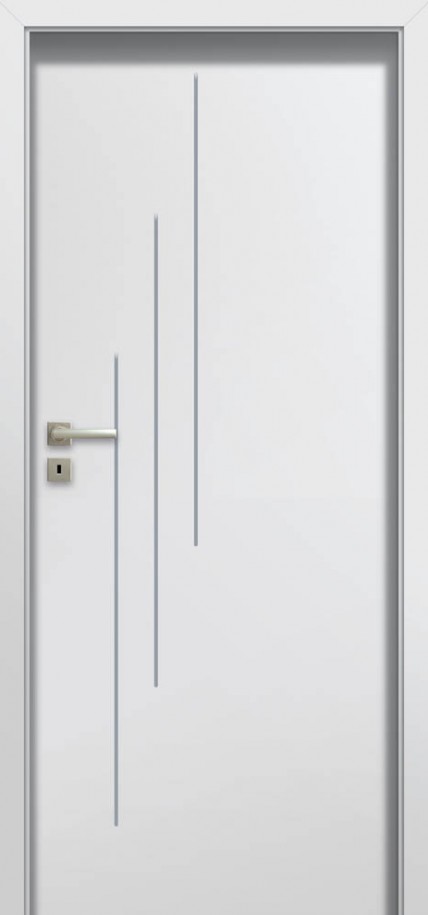

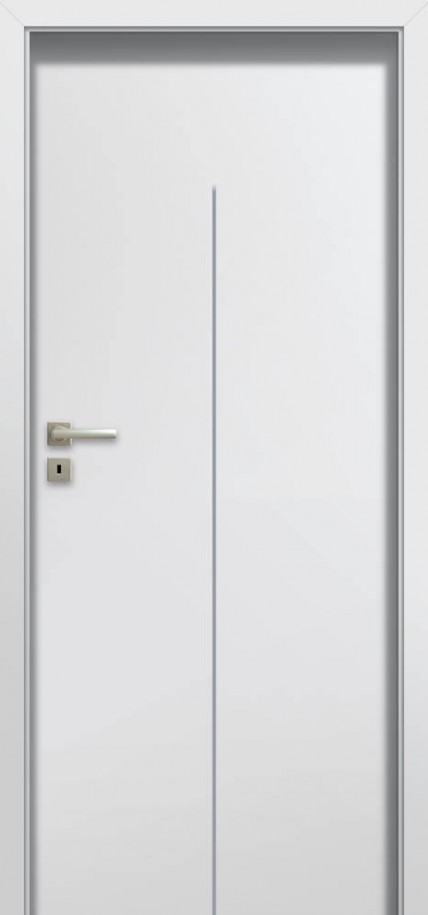

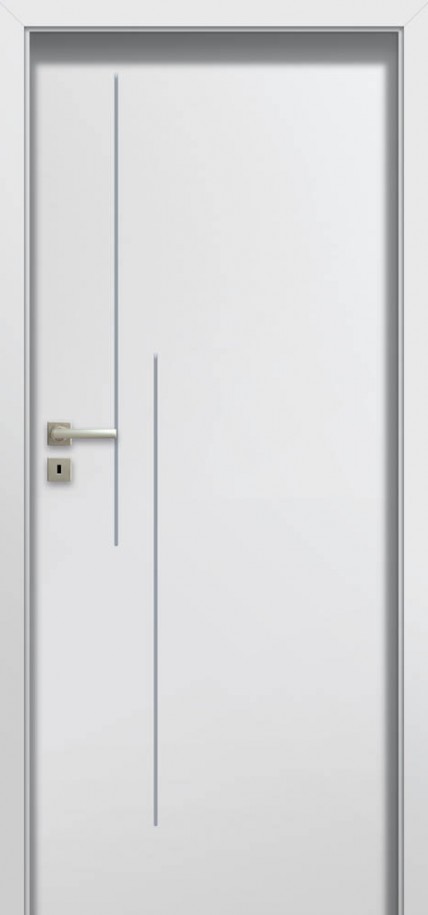

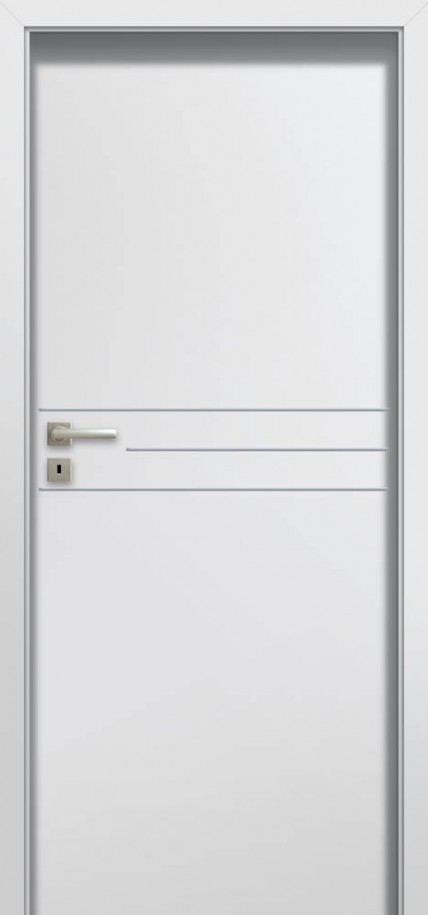

TIARA modern doors will add a luxurious touch to your interior. Check out the new designs W09, W10 and W11 Chic aluminium decors subtly decorate the smooth surface of the leaves. High quality painted wings will complement your space.

• solid construction - wooden frame
• stable solid board infill
• layered painting system - colour durability for many years
• wide range of RAL and NCS colours
• adjustable hinge type K, type C and adjustable type DUO

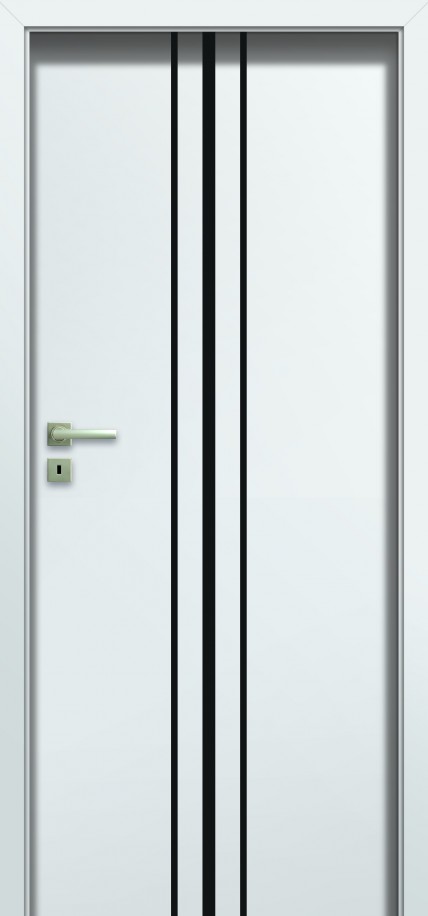

• aluminium decors in widths of 25 mm and 10 mm in the colours black matt, chrome matt and copper matt

STANDARD EQUIPMENT (INCLUDED IN THE PRICE

• single point locking system, 72 mm spacing (rebate system) or magnetic (flush system) mortise lock, keyed
  for key (90 mm apart), for insert (85 mm apart) or for bathroom lock (90 mm apart)
• hinges: type K silver - for DIN system frame, type C silver - for wooden frame, type M - for metal frame or covered DUO satin nickel (‘60’-‘70’ - 2 pcs., ‘80’ - ‘90’ - 3 pcs.).

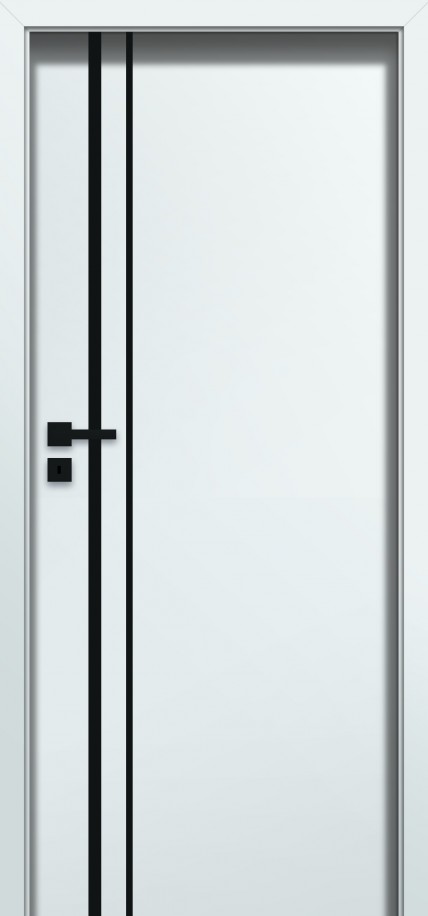

• collection BLACK: standard magnetic lock face plate and DUO hinges are in black
• version W08: no possibility to use ventilation slot or grate

ADDITIONAL EQUIPMENT (AT AN EXTRA CHARGE):

•  size ‘100’
• REVES system
• recuperation shortcut at no extra charge
• third hinge in the sash:
  type C for widths ‘60’-"80’
  type K for widths ‘60’-"80’
  type M for widths ‘60’-"80’
  covered DUO for widths ‘60’-"70’
• exchange of standard DUO hinge for white or black colour (up to 1 unit)
• exchange of colour of DUO lock for black or golden shine without additional charge
• rebate system BLACK collection: change of lock colour to black at no extra charge
• frame (allows for self- shortening up to 50 mm) (does not apply to pattern W08)
• frame (may be shortened individually to 90 mm) (does not apply to model W08)
• Protection of the bottom frame against excessive moisture penetration (does not apply to wings with ventilation cut-out)
• doors lower by 50 mm or 100 mm (rebate system) at no extra charge
• doors lower by 55 mm or 100 mm (rebateless system) without a surcharge
• doors higher by 50 mm or 100 mm (third hinge required at extra charge) +10%
• doors higher by 150 mm or 200 mm (third hinge required at extra charge) +20%
• ventilation undercut
• aluminium decors in black, gold gloss, chrome gloss at no extra charge
• door leaf edging in black, grey or graphite

ADDITIONAL INFORMATION:

• Technical Approval: AT-15-6411/2016
• door adapted to recuperation shortcut
