description of the product

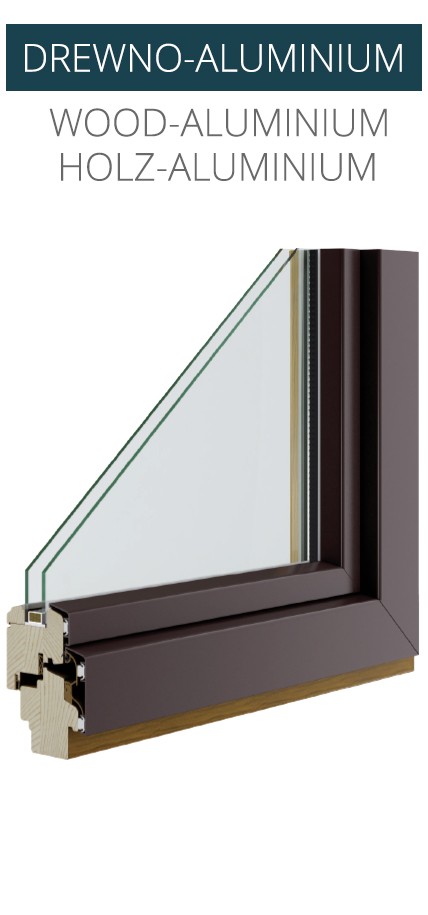

Window TYPE C ALU-EFFECT
WOOD-ALUMINIUM
CONSTRUCTION
- single-frame window, sash and frame thickness 68 mm, with 81 mm cladding, type C glazing bead; optional S-System
MATERIAL
- glued laminated pine wood, optionally oak
FINISHING
- Water-based opaque or transparent paints, three-coat opaque system, four-coat transparent system,
- powder-coated aluminium, basic colours RAL 9016, 9010, 9007, 9006, 9005, 8019, 8017, 8007, 8001, 7042, 7035, 7016, 6005, 5010, 3004, 1013, other RAL colours are available at an extra charge.
STANDARD EXECUTION
- double glazing unit with warm distance frame
- Roto NX all-round hardware with microventilation function and three-dimensional adjustment, with anti-balance protection, handle misplacement blockade
- hinge covers, two profile gaskets available in white or brown
- aluminium cladding on the outside
- additional seal between the frame cladding and the sash cladding
- handle
PARAMETERS
- thermal transmittance*: 1.2 W/(m2K) or 1.1 W/(m2K)**.
- watertightness class: E900
- air permeability class: 4
- wind load resistance class: B2
- acoustic properties: 33 (-1;-5) dB
(*) Heat and sound insulation values apply to a reference window size of 1.23 x 1.48 m with glazing Ug=1.0 W/m2K
(**) Heat and sound insulation values given apply to a reference window size of 1.23 x 1.48 m with glazing Ug = 0.8 W/m2K
Window prices are calculated according to modular price list available at points of sale. Warranty up to 5 years - detailed conditions in the documentation enclosed with the product.
Select a model
TRANSPARENT PAINTS ADLER - PINE
PINIA MAT A16
GRANITE MAT A15
ANTRACIT MAT A14
BLACK MAT A13
WHITE MAT A12
COFFE MAT A11
KARMEL MAT A10
HONEY MAT A09
GRAFIT MAT A08
CAPPUCINO MAT A07
LATTE MAT A06
NATURE PREMIUM MAT A05
NATURE GREY MAT A04
NATURE WHITE A03
NATURE BROWN A02
NATURA MAT A01
TRANSPARENT PAINTS ADLER - OAK
PINIA MAT A16
GRANITE MAT A15
ANTRACIT MAT A14
BLACK MAT A13
COFFE MAT A11
KARMEL MAT A10
HONEY MAT A09
GRAFIT MAT A08
CAPPUCINO MAT A07
LATTE MAT A06
NATURE PREMIUM MAT A05
NATURE GREY MAT A04
NATURE BROWN A02
NATURE MAT A01
TRANSPARENT PAINTS - PINE
7016 antracyt transparentny
9001 biały transparent
9005 czarny transparent
5065 afromozja
5063 pinia
5219 teak antyczny
1710 oliwka antyczna
5067 sapelli
1519 antique oak
1040 IMPREGNATE
0046 WALNUT
5060 OLD PINE
0044 DARK TEAK
0022 LIGHT TEAK
5062 cyprys
5056 iroko
TRANSPARENT PAINTS - OAK
7016 antracyt transparentny
9005 czarny transparent
5065 afromozja
5063 pinia
5219 teak antyczny
1710 oliwka antyczna
5067 sapelli
1519 dąb antyczny
1040 impregnat
0046 ORZECH
5060 stara sosna
0044 CIEMNY TEAK
0022 JASNY TEAK
5062 cyprys
5056 IROKO
COVERING PAINTS
RAL 5011 navy blue
brown NCS S8010-Y90R
white RAL 9016
RAL 7047 grey
RAL 7016 anthracite
