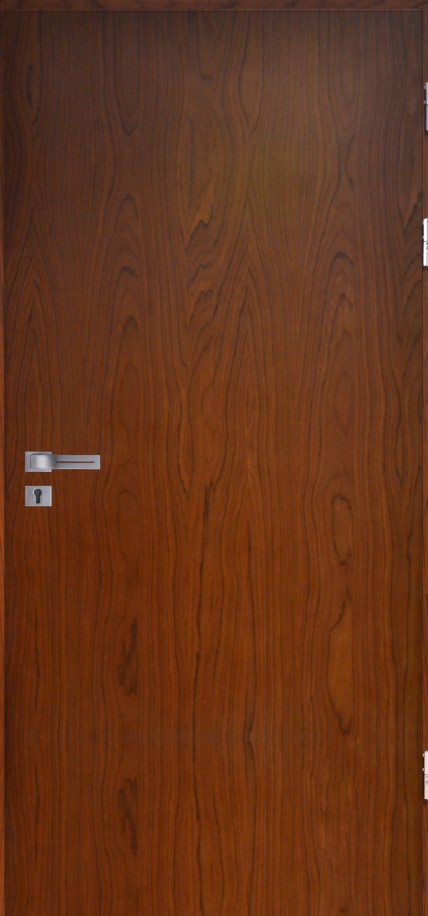

Fire protection door EI30 PLUS FLAT

Halspan system EI30 Plus rebated fire door with metal frame equipped with PHA 2000 or PHA 2500 anti-panic hardware and EXACTA 495 ⌀16 mm hinges meet the requirements of PN-EN 1125:2009 in terms of release capacity and can be used on escape routes and exits.

SASH CONSTRUCTION:

Sash in a rebate-free system, wooden and metal frame (fixed or adjustable). The structure of the leaf is a layered particleboard with coniferous wood dovetailed with HDF panels on both sides. The nominal thickness of the leaf is 50 mm.

PARAMETERS:

• Fire resistance EI230
• sound insulation
• single-leaf:
  class D1 - 30, D2 - 25, class Rw=32 dB
• double-leaf:
  class D1 - 25, D2 - 25, class Rw=27 dB
• 3 mechanical strength class according to PN-EN 1192:2001 standard
• Smoke tightness class Sa, S200 (option)
• National Technical Assessment ITB-KOT-2018/0407 issue 1
• National Certificate of Constancy of Performance No. 020-UWB-2695/W

GLAZING:

• Transparent glass with fire resistance EI30. Pine frame painted, veneered or veneered with foil in color matching the color of the sash. Available porthole type glazing with Ø320 mm steel frame (on the outside of the frame).

STANDARD EQUIPMENT (INCLUDED):

(doors with wooden or metal frames)

• 3 or 4 pivot hinges adjustable in 3 planes of OTLAV company
• mortise lock with a patent insert
• drop gasket

FRAMES:

• Painted, veneered frame, veneered with CPL 0,15 mm laminate or foil matched to the color of the leaf.
• Wooden fixed pine - optionally with masking strips, quarter round.
• Wooden adjustable with widening panels, angle bands and masking strip.
• Fixed metal made of 1.5 mm thick steel sheet standard powder-coated in white (RAL 9016 and RAL 9003), gray (RAL 7047), brown (RAL 8014), beige (RAL 1001), graphite (RAL 7024), black (RAL 9005).
• Adjustable metal made of steel sheet 1.5 mm thick powder coated in white (RAL 9016 and RAL 9003), gray (RAL 7047), brown (RAL 8014), beige (RAL 1001), graphite (RAL 7024), black (RAL 9005) as standard.
• It is possible to paint frames in non-standard colors from the RAL or NCS palette after consultation with the Sales Department. The door frame consists of a basic part and an angle band inserted into the basic part.

OPTIONAL EQUIPMENT (AT EXTRA CHARGE):

• aluminum decors
• decorations, surface or covered door closer, panic locks, panic levers, electric strikes, electromagnetic jumpers, reed switch, additional lock
• It is possible to prepare a milling in the wing for a (electronic) hotel lock after consultation with the Sales Department.

DOOR DIMENSIONS:

Fixed wood frame or adjustable frame:

Interlocking system:

Single leaf door: max. width “110” - 1212 mm, max. height 2500 mm
90 Plus version (allows you to obtain a passage light min. 900 mm when the sash is opened by 90°) 1032x2075 mm
Double leaf doors: max. width “110+110” - 2352 mm, max. height 2500 mm
Fixed metal frame:

Interlocking system:

Single leaf door: max. width “110” - 1204 mm, max. height 2271 mm
Version 90 Plus (allows you to get the passage light min. 900 mm when the sash is opened by 90°) 1024x2071 mm
Double leaf doors: max. width “110+110” - 2342 mm, max. height 2271 mm
Adjustable metal frame:

Interlocking system:

Single-leaf door: max. width “110” - 1224 mm, max. height 2281 mm
Version 90 Plus (allows you to get the passage light min. 900 mm when the sash is opened by 90°) 1044x2081 mm
Double-leaf doors: max. width “110+110” - 2362 mm, max. height 2281 mm
It is possible to manufacture non-standard widths and heights of doors after consultation with the Sales Department.

Fixed wooden or adjustable door frame:
Door frameless system:

Single leaf doors: max. width “110” - 1212 mm, max. height 2500 mm
Version 90 Plus (allows you to get the passage light min. 900 mm when
opening of the sash by an angle of 90°) 1072x2075 mm
Double leaf doors: max. width “110+110” - 2330 mm, max. height 2500 mm
Fixed metal frame:
Doorless system:

Single leaf door: max. width “110” - 1224 mm, max. height 2281 mm
Version 90 Plus (allows you to get passage light min. 900 mm when
opening of the sash by an angle of 90°) 1084x2081 mm
Double-leaf doors: max. width “110+110” - 2340 mm, max. height 2281 mm
Adjustable metal frame:
Doorless system:

Single-leaf door: max. width “110” - 1224 mm, max. height 2281 mm
Version 90 Plus (allows you to get the passage light min. 900 mm when
opening of the sash by an angle of 90°) 1084x2081 mm
Double-leaf doors: max. width “110+110” - 2340 mm, max. height 2281 mm
It is possible to manufacture non-standard widths and heights of doors after consultation with the Sales Department.

ADDITIONAL INFORMATION:

NOTE: In order to meet the conditions of fire resistance to the door, it is necessary to use a door closer that meets the requirements of PN-EN 1154:1999/A1:2004/AC:2010, door handles that meet the requirements of PN-EN 1906:2012, and cylinder locks that meet the requirements of PN-EN 1303:2007+AC:2008.
