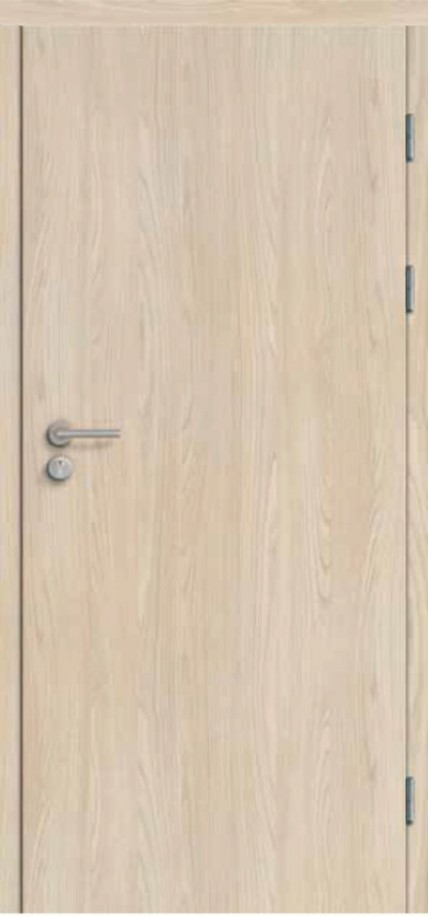

FR EI30 SR fire door

The door is intended for use as an internal entrance door in residential, collective residence, public and industrial buildings, constituting, according to the terminology established in the PN-B-91000:1996 standard, closures of openings in internal walls, between the staircase or corridor and rooms.

SASH CONSTRUCTION:

The sash in the non-rebate system. The structure of the leaf is a frame of softwood clad on both sides with HDF boards. The filling is a special Pol-Skone construction. The nominal thickness of the leaf is 57 mm.

PARAMETERS:

• Fire resistance EI230
• acoustic insulation
• FR EI30 single-leaf:class D1 - 35, D2 - 35, class Rw=37 dB
• 3 mechanical strength class according to PN-EN 1192:2001 standard
• National Technical Assessment ITB-KOT-2020/1370 issue 1
• National Certificate of Constancy of Performance No. 020-UWB-1937/W

STANDARD EQUIPMENT (INCLUDED IN THE PRICE):

• 3 object hinges type OBX made by ECO SCHULTE
• mortise lock with cylinder insert
• 2 drop gaskets

FRAMES:

• Painted, veneered frame, veneered with CPL 0,15 mm laminate or foil matching the color of the leaf.
• Wooden fixed pine - optionally with masking strips, quarter round.
• Wooden adjustable with widening panels, angle bands and masking strip.

ADDITIONAL EQUIPMENT (AT AN EXTRA CHARGE):

• decorations, stainless steel panels, aluminum decors
• electromotive lock EL560/EL561
• coded mortise locks (hotel)
• overhead or covered door closer
• additional mortise locks
• aversion or reversing electric door openers
• reed switch
• electromagnetic jumper
• electromagnetic hold-open device
• panic lever with surface or mortise lock
• width “100” +10%
• height 2175 mm +10%

DOOR DIMENSIONS:

Fixed wooden or adjustable frame - 1012x2075 mm
single leaf doors: width “60” - “100” - 712 - 1112 mm, max. height 2175 mm.

INVESTMENT WIDTH
Version 90 Plus (allows to obtain the passage light min. 900 mm when opening the sash by an angle of 90°) 1072x2075 mm.

NOTE: In order to meet the conditions of fire resistance to the door, it is necessary to use a door closer that meets the requirements of PN-EN 1154:1999/A1:2004/AC:2010, door handles that meet the requirements of PN-EN 1906:2012 (min. class B in terms of fire resistance) and lock cylinders that meet the requirements of PN-EN 1303:2007+AC:2008 (class 1 in terms of fire resistance).
