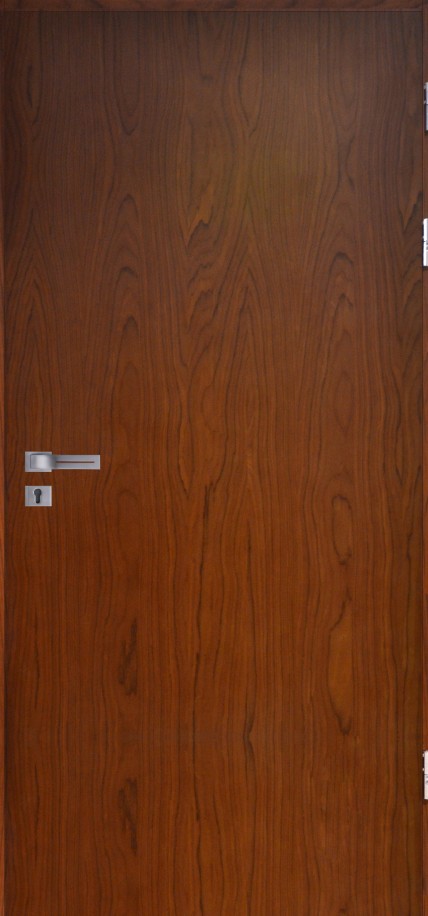

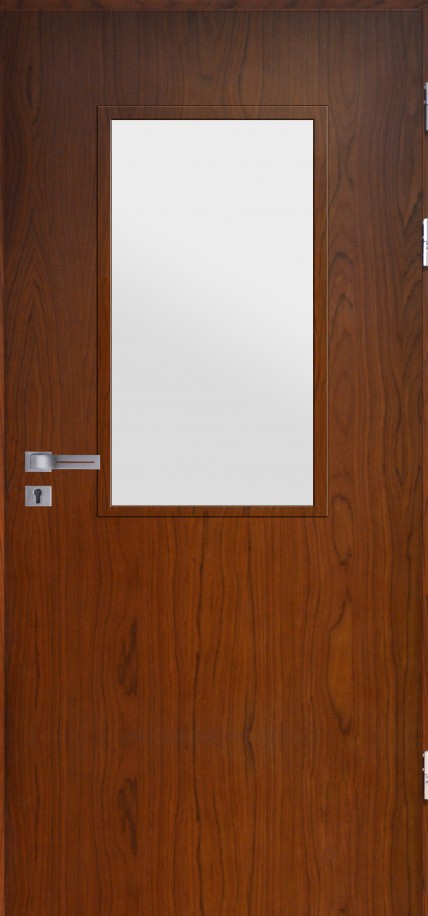

EI60 PLUS REBATE

Halspan system EI60 Plus rebated fire door with metal frame equipped with PHA 2000 or PHA 2500 anti-panic hardware and EXACTA 495 ⌀16 mm hinges meet the requirements of PN-EN 1125:2009
in terms of release capability and can be used on escape routes and exits. The sash in a rebated system. The structure of the leaf is a layered particleboard with softwood dovetailed with HDF panels on both sides. The nominal thickness of the leaf is 60 mm.

- Fire resistance EI260
- acoustic insulation
- single-leaf:
class D1 - 30, D2 - 25, class Rw=32 dB
- double-leaf:
class D1 - 25, D2 - 25, class Rw=32 dB
- 3 class of mechanical strength according to the standard
PN-EN 1192:2001
- Smoke tightness class Sa, S200 (option)
- National Technical Assessment ITB-KOT-2018/0407 issue 2
- National Certificate of Constancy of Performance
No. 020-UWB-2695/W
