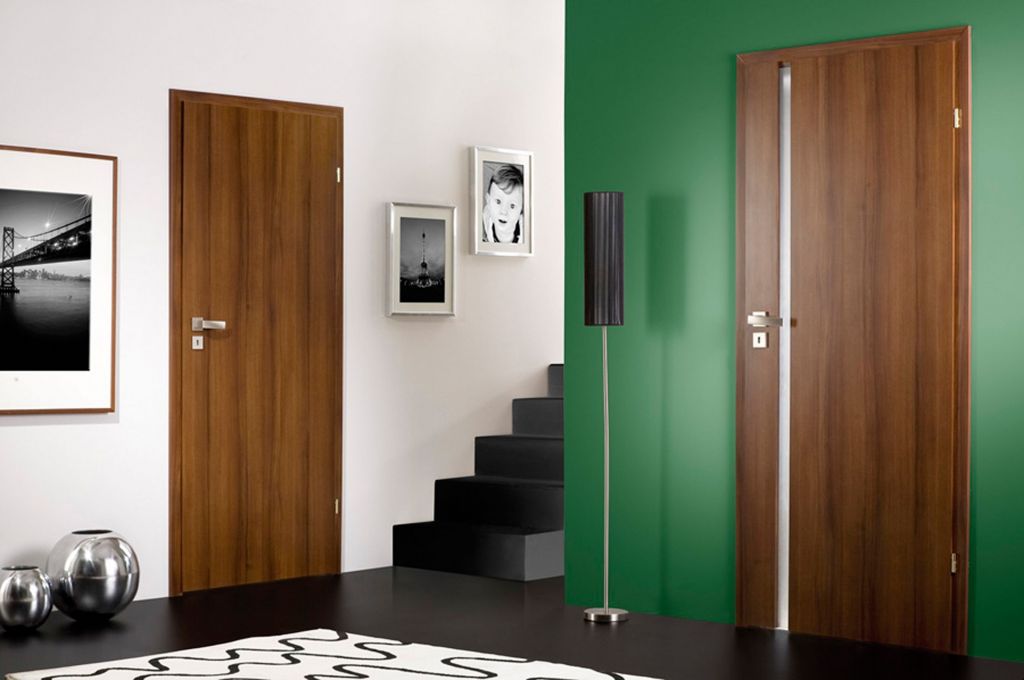

INTERIOR DOOR IMPULS

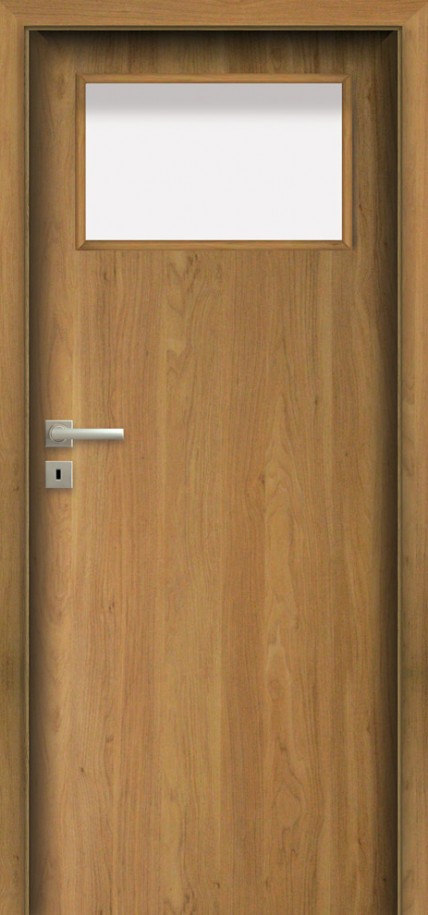

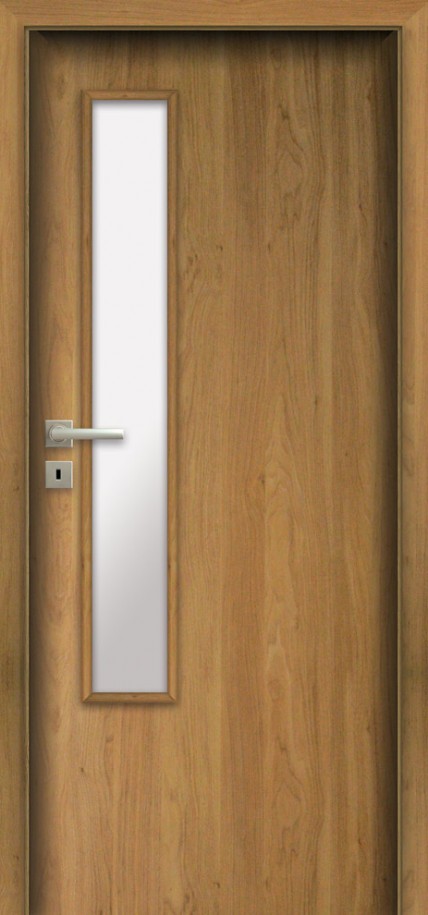

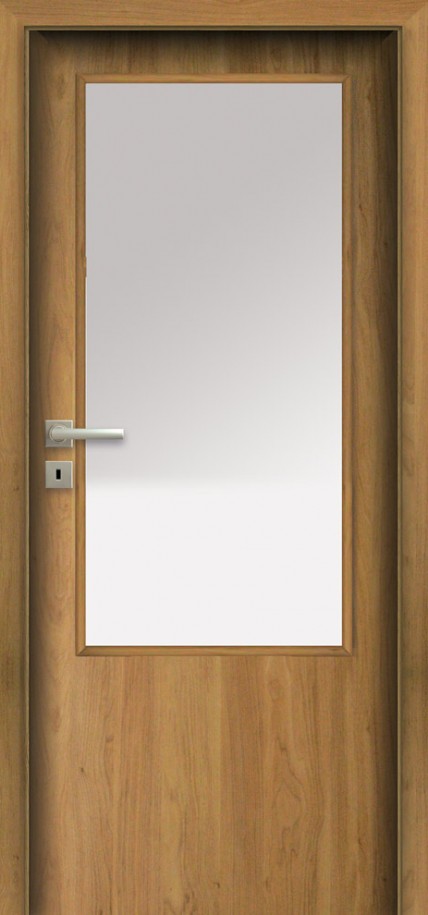

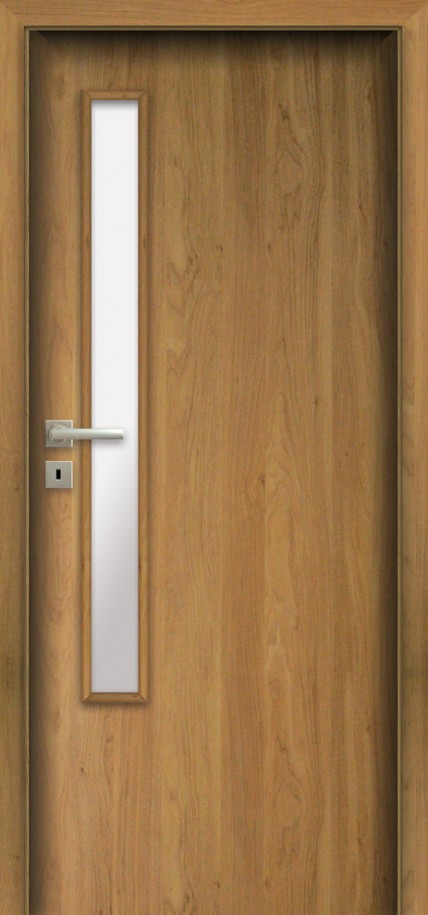

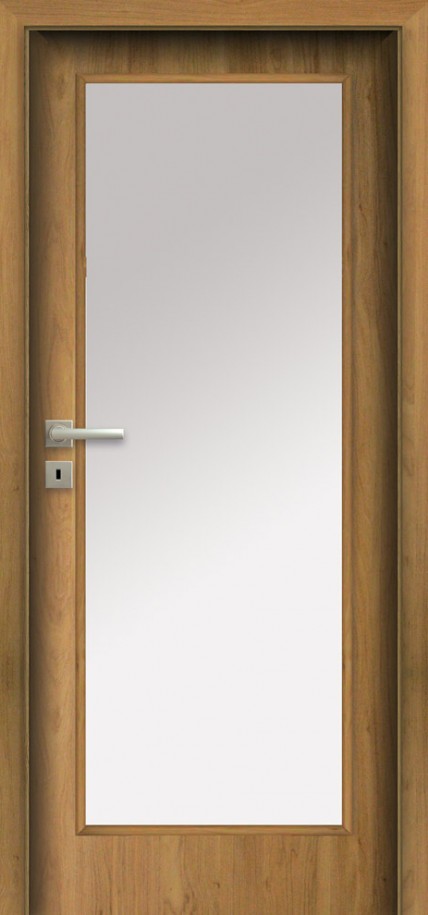

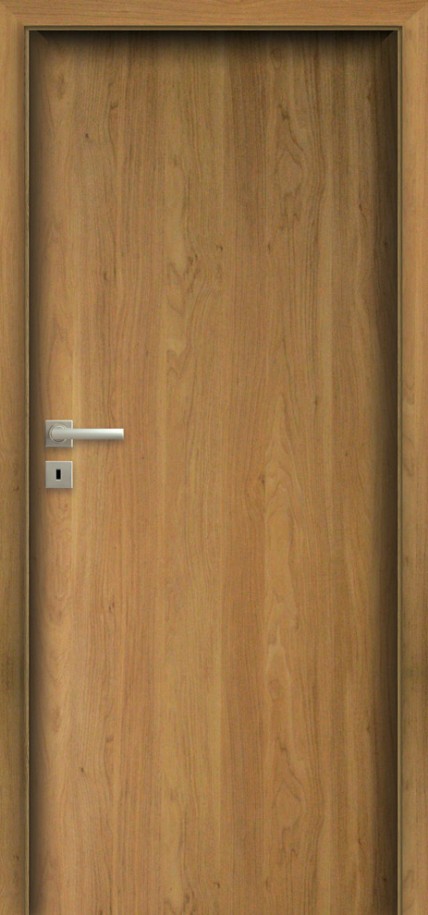

The modern IMPULS door will fit into fashionable spaces. Available versions: full or with glass.

• solid construction – wooden rail and stile set
• door available in 10 working days under the “fast
  delivery” promotion
• large LAMISTONE CPL and SILKSTONE surface finish
• K and C type adjustable and DUO type concealed hinges

STANDARD EQUIPMENT:

• white/brown matt or transparent 4 mm glass
  white/brown matt tempered glass version W03, W05
• version W13: white/brown matt tempered glass, thickness: 6 mm

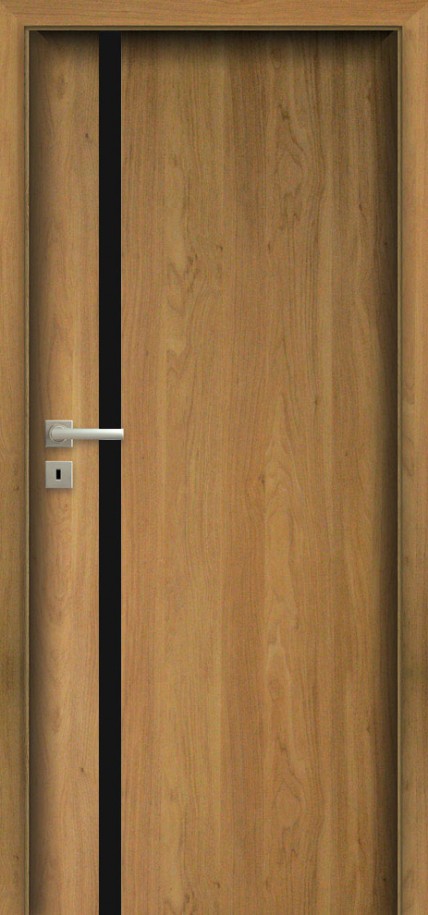

  version W14: laminated glass 44.2 in the colour of black, 8.5 mm thick
• single-point mortise lock, spacing: 72 mm (rebated system) or magnetic
  mortise lock (non-rebated system), key-operated (spacing: 90 mm),
  for a cylinder (spacing: 85 mm) or a bathroom lock (spacing: 90 mm)
• hinges: type K – for the DIN system door frame, type C - for the
  wooden door frame, type D - for the MDF door frame,
  type M – for the metal door frame or the concealed DUO satin nickel
  (”60”-”80” – 2 pcs, ”90” – 3 pcs)
• in case of door leaf with door closer and DIN system or metal frame
  to be used T type hings ( „60”-„80” – 3 pcs, „90”-„110” – 4 pcs) -
  replacement of standard hinges with hinge type T for an extra charge

ADDITIONAL EQUIPMENT (AVAILABLE AT AN EXTRA CHARGE):

• size “100” (glazing decoration as in “90”)
• size “110” (glazing decoration as in “90”)
• REVES system (version W01, W13, W14)
• recuperation trim (not applicable to version W13, W14)
• perforated chipboard in-fill
• solid chipboard in-fill (third hinge recommended)
• third hinge in the door leaf or adjustable pivot hinge:
  type K, type C, type M for a width of ”60”-”80”
  concealed DUO type for a width of ”60”-”80”
• the DUO lock colour replaced with black or golden gloss colour
• rail and stile set (allowing the user to shorten the door leaf by max.
  50 mm on a do-it-yourself basis) (not applicable to version W13, W14)
• rail and stile set (allowing the user to shorten the door leaf by max.
  90 mm on a do-it-yourself basis) (not applicable to version W13, W14)
• reinforcement for door closer (not applicable to version W13, W14)
• bottom rail and stile set protection against excessive moisture impact
  (not applicable to leaves with ventilation trim)
  (not applicable to version W13, W14)
• door lower by 50 mm or 100 mm (rebated system) (not applicable
  to version W13, W14)
• door lower by 55 mm or 100 mm (non-rebated system) (not applicable
  to version W13, W14)
• door higher by 50 mm or 100 mm (not applicable to version W13, W14)
  (not applicable to the fixed MDF frame) (third hinge in the door leaf
  is required)
• door higher by 150 mm or 200 mm (not applicable to version
  W13, W14) (not applicable to the fixed MDF frame)
  (third hinge in the door leaf is required)
  version W13, W14 door lower 1970 mm (rebated system), 1985 mm
  (non-rebated system)
• version W13, W14 door higher by 100 mm (not applicable to the fixed
  MDF frame) (third hinge in the door leaf is required)
  version W13, W14 door higher by 200 mm (not applicable to the fixed
  MDF frame) (third hinge in the door leaf is required)
• ventilation trim
• tempered glass:
  version W02, W06, W07, W12D1, W12
• sliding system (not applicable to version W13, W14)
• tempered transparent 4 mm thick glass
